Medium power buses

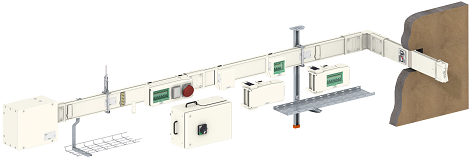

Canalis KS is designed for medium power distribution from 100A to 1000A with high tap-off densities in industrial and commercial buildings. It provides an IP55 degree of protection whatever the installation method. Consequently, it can be installed in virtually any types of buildings.
Technical characteristics:
- Busbar trunking rated current: 100 to 1000A
- Tap-off units rated current: 16 to 400A
- Number of active conductors: 4+PE
- Rated insulating voltage: 690V
- Protection index: IP55
- Length of busbar trunking sections: 3m and 5m
- Surface treatment: white RAL 9001
- Regulations: compliant with IEC 61439-1 & 6
Benefits
-
Modular and upgradeable system
-
Quick and easy assembly
-
Flexible: possibility to install a new plug-in unit right where it is needed and without power interruption
-
Safety
- A fool-proofed system avoids a unit being installed or removed under load
- Live parts are totally inaccessible
- Tap-off units fully compatible with Canalis KT
-
Light and easy to handle
-
Excellent contacts: a life time guarantee
-
Comprehensive range of light, strong and stylish plug-in units
-
Halogen free: no emission of any fumes or toxic gases in the event of fire
-
High protection index IP 55 for all types of buildings
-
Dismantled, re-used and entirely recyclable
Applications
-
Industrial buildings: industrial sites, local small contractors, logistic centres
-
Commercial/Tertiary buildings: shopping malls, hyper/supermarkets, hotels, elderly people's homes, technical schools, sports rooms
-
Critical buildings: data centres, hospitals
-
Marine: cruise liners
|

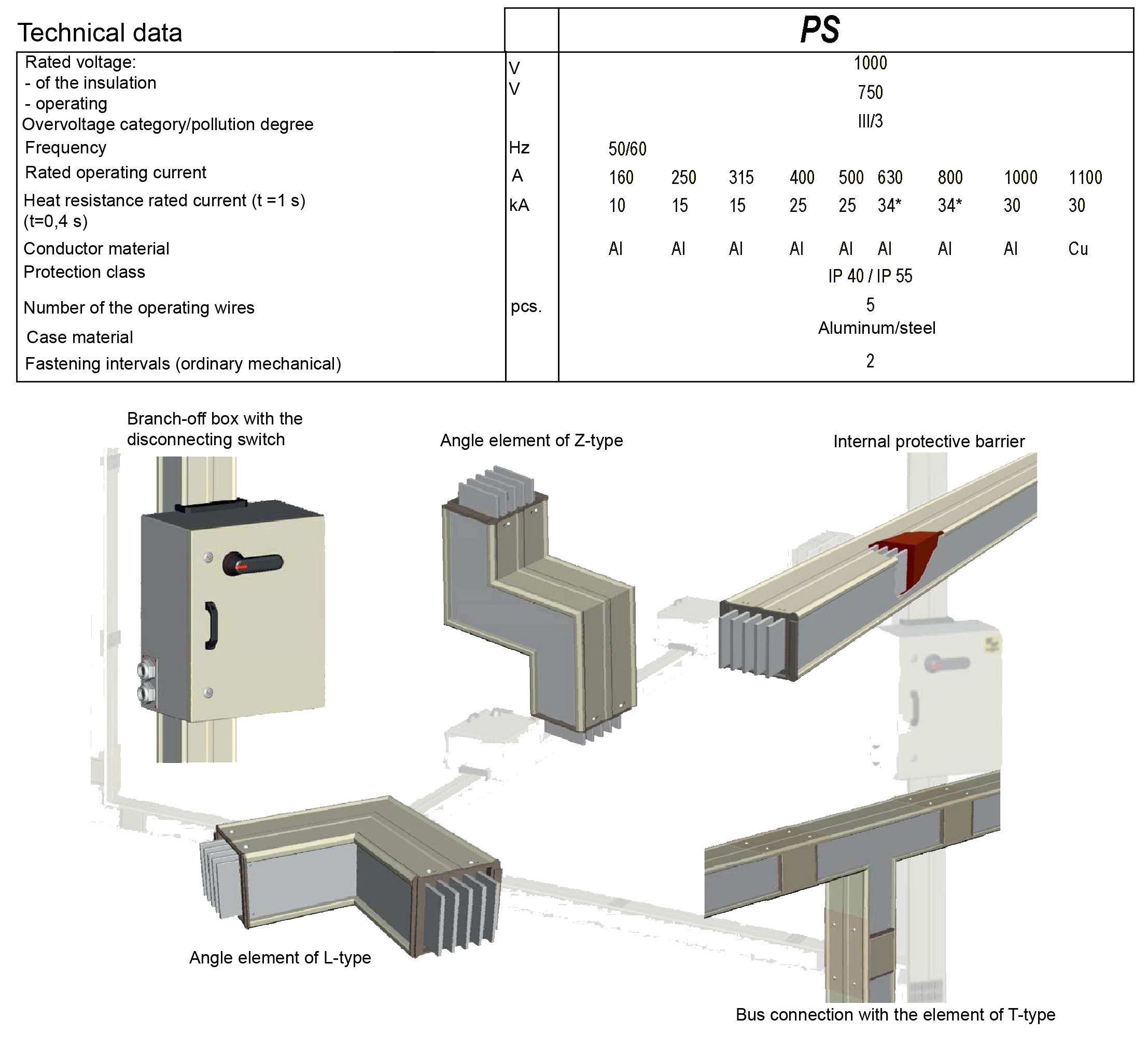

The PS medium power busbar system is designed to provide electricity to the consumers in the range of the rated current from 160 to 1100 A. These systems are ideal for use in large multistory buildings and industrial pavilions considering the possibility of power supply from both the top and the bottom. |
 |

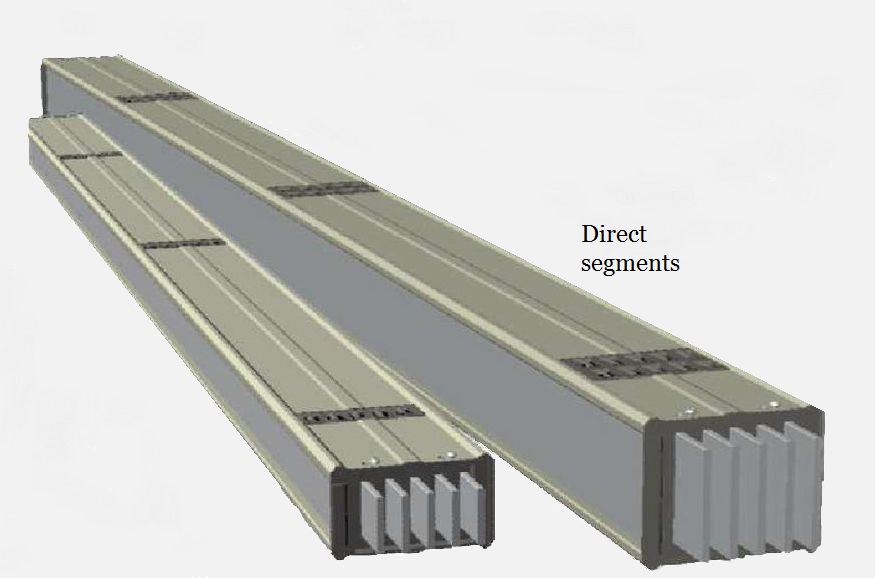

The wide range of elements allows mounting the buses both horizontally and vertically, and changing freely the direction of their laying. The hubs placed in the case at the regular intervals ensure the optimal places for the drainage boxes connection according to the requirements of this electrical system. The additional security of the PS system for the people and equipment is provided by the use of fire-resistant barriers preventing the fire and smoke spreading beyond the source of fire. Increasingly these buses are used on the different atypical facilities, for example, on the vessels.
Considering the financial costs for the PS busbar installation in complex we ensure that they are much lower than the costs for the traditional cable installation and the installation offered by the other buses manufacturers. It equally concerns the stages of design, installation, operation and, above all, a possible modification of the electrical system.
