Low power buses

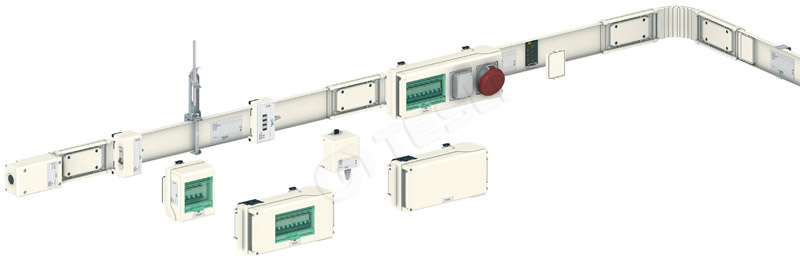

Canalis KN is designed for low power distribution from 40A to 160A. Canalis KN is equipped with a transmission bus used to set up simple control/monitoring systems (lighting or other loads).
Technical characteristics:
- Busbar trunking rated current: 40 to 160A
- Tap-off units rated current: 16 to 63A
- Number of active conductors: 4+PE
- Rated insulating voltage: 500V
- Protection index: IP55
- Length of busbar trunking sections: 2m and 3m
- Surface treatment: white RAL 9001
- Regulations: compliant with IEC 61439-1 & 6
Benefits:
- Modular and upgradeable system
- Quick and easy assembly
- Flexible:possibility to install a new plug-in unit right where it is needed and without interruption
- Safety
- Light and easy to handle
- A fool-proofed system avoids a unit being installed or removed under load
- Live parts are totally inaccessible
- Excellent contacts: a life time guarantee
- A range of light, strong and stylish plug-in units
- Halogen free: Canalis does not emit any fumes or toxic gases in the event of fire
- High protection index IP 55 for all types of buildings
- Dismantled, re-used and entirely recyclable
Applications:
- Industrial buildings: small industrial sites, local small contractors, logistic centres
- Commercial/Tertiary buildings: shopping malls, hyper/supermarkets, hotels, elderly people's homes, technical schools, sports rooms
- Critical buildings: data centres, hospitals
- Marine: cruise liners

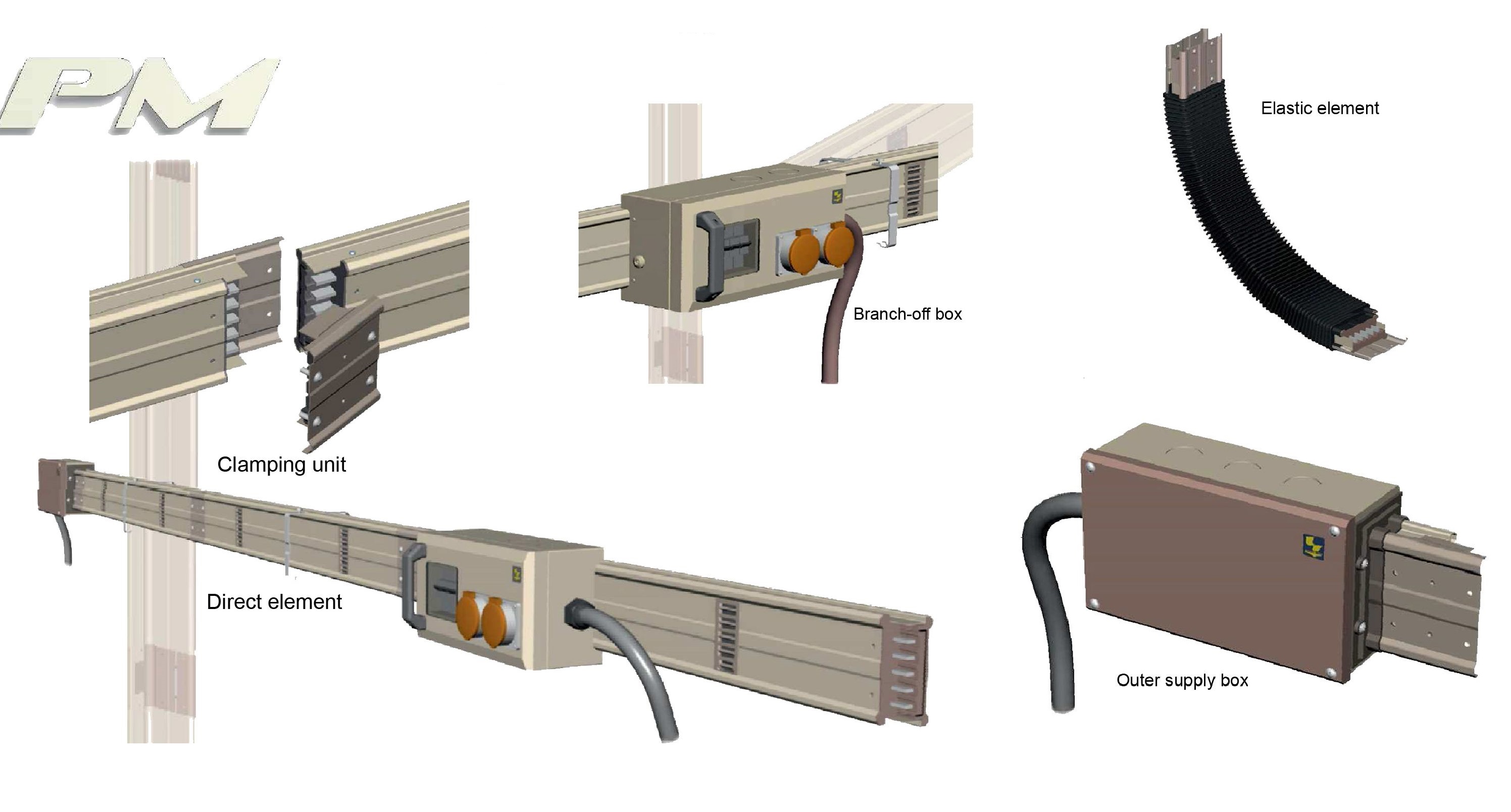

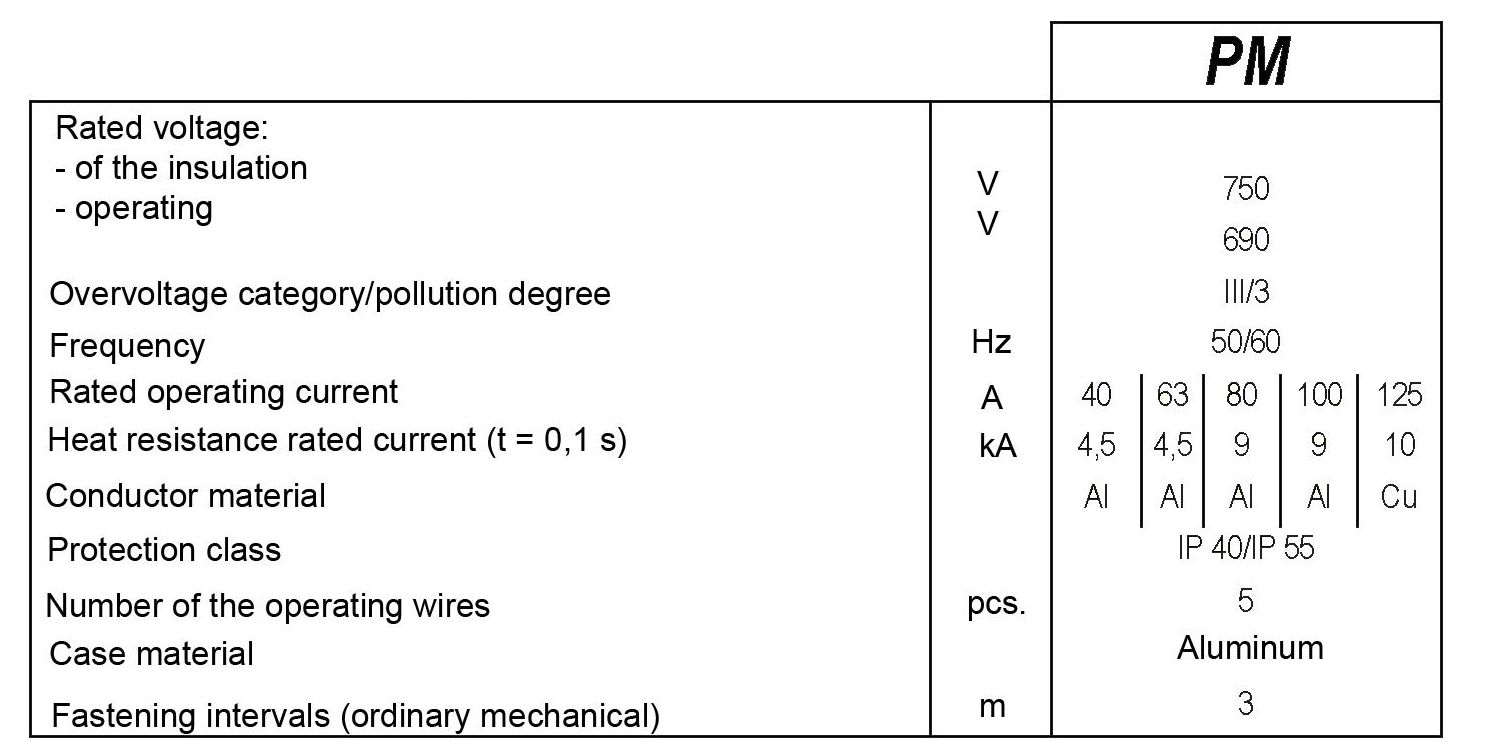

The PM low power busbar system is used to distribute the electricity on the facilities with the range of the rated consumer current from 40 to 125 A. The system is ideally suited for the networks with a large number of branch-off points. It is mainly used at the small private and industrial enterprises.
The disposition of the branch-off points at the short intervals makes it possible to access the power source at any site along the entire power supply network – depending on the individual needs. This allows planning the power supply system before drawing up the detailed final plan for the disposition of the electrical consumers and even before the determination of their power.
The system consists of modules so it can be mounted easily. At the same time, its elements are designed in such a way that the risk of their wrong connection is excluded. The clamping units connecting the individual elements of the buses can compensate both thermal and mechanical vibrations.
